ENVISION'S LINE OF ECO-AWARE PRODUCTS ARE DESIGNED
TO HELP YOU MEET YOUR EMISSION REDUCTION GOALS
20221028_080548_edited
20200330_182102
20200330_182044_edited
INSTRUMENT AIR COMPRESSORS
Envision Manufacturing provides instrument air compressors for the oil & gas industry. By implementing instrument air compressors in their operations industries can reduce costs and emissions, and ensure all components of your machinery are operating at their full potential. We offer reciprocating and screw instrument air compressors to fit the needs of your operation. Our instrument air compressors systems, including our 15 HP Dual Screw Compressor, are designed with efficiencies and simplified operation in mind.
Envision Manufacturing's instrument air compressors are competitively priced to fit your operation's budgets.
15 - 100HP Instrument Air Compressor Packages
STANDARD MODELS (15HP-150HP)
CUSTOM MODELS (15HP-150HP)
COMPLETE ELECTRICAL PRE-WIRING
COMPLETE STRUCTURAL SKID & BUILDING
WET & DRY AIR RECEIVERS (120-5,000 GALLONS)
Dual 15HP Ex-Proof Air Compressor_edited
20200612_081054
20200330_182203_edited
WORKING WITH THE INDUSTRIES' TOP BRANDS
5 - 25HP Instrument Air Compressor Models
5 HP Single Reciprocating
17cfm @ 175 psi
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
• Centrifugal unloader
• Disk and spring valves
• Fully enclosed belt guard
• Heavy-duty two stage solid cast iron pump
• Industrial grade electric motor
• Access to compressor valves without compressor head removal
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• TEFC drive motor (3 phase only)
• Torrington needle bearings
• 2-grove B width motor pulley
• 2-piece tank top plate design
• Heavy-Duty air filter
Basic Compressor Features
Elite Compressor Features
• All Basic Features
• Automatic tank drain
• Low oil monitor
Air Dryer Options
• Refrigerated Dryer - for Shop Applications
• Modular Air Dryer capable of -40o C Dew Point (available - for outdoor Applications)
• Tank Discharge Ball Valve
• Vibration Pads
5 HP Dual Reciprocating
36 cfm @ 175 psi (Both Compressors Running)
18.5 cfm @ 175 psi (One Compressor Running)
• Access to compressor valves without compressor head removal
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
• Centrifugal unloader
• Disk and spring valves
• Fully enclosed belt guard
• Heavy-duty air filter
• Industrial grade electric motor
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• TEFC drive motor (3 phase only)
• Torrington needle bearings
• 2-groove B width motor pulley
• 2-piece tank top plate design
• Heavy-duty two-stage solid cast iron pump
Basic Compressor Features
Elite Compressor Features
• All Basic Features
• Automatic tank drain
• Low oil monitor
Air Dryer Options
• Refrigerated Dryer - for Shop Applications
• Modular Air Dryer capable of -40o C Dew Point (available - for outdoor Applications)
• Tank Discharge Ball Valve
• Vibration Pads
7.5 HP Single Reciprocating
24 cfm @ 175 psi
• Access to compressor valves without compressor head removal
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
•Centrifugal unloader
•Disk and spring valves
• Heavy-duty air filter
• Heavy-duty two stage solid cast iron pump
• Industrial grade electric motor
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• TEFC drive motor (3 phase only)
• Torrington needle bearings
• 2-grove B width motor pulley
• 2-piece tank top plate design
Basic Compressor Features
Elite Compressor Features
• All Basic Features
• Automatic tank drain
• Low oil monitor
Air Dryer Options
• Refrigerated Dryer - for Shop Applications
• Modular Air Dryer capable of -40o C Dew Point
(available - for outdoor Applications)
• Tank Discharge Ball Valve
• Vibration Pads
• Belt guard after cooler
7.5 HP Heavy-Duty Dual Recipricating
• Access to compressor valves w/o compressor head removal
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
•Centrifugal unloader
•Disk and spring valves
• Fully enclosed belt guard
• Heavy-duty air filter
• Industrial grade electric motor
• Heavy-duty two-stage solid cast iron pump
• Industrial grade electric motor
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• TEFC drive motor (3 phase only)
• Torrington needle bearings
• 2-groove B width motor pulley
• 2-piece tank top plate design
Basic Compressor Features
Air Dryer Options
56 cfm @ 175 psi (Time Delay)
28 cfm @ 175 psi (Alternating)
Elite Compressor Features
• All Basic Features
• Automatic tank drain
• Low oil monitor
• Tank Discharge Ball Valve
• Vibration Pads
• Belt guard after cooler
• Refrigerated Dryer - for Shop Applications
• Modular Air Dryer capable of -40o C Dew Point
(available - for outdoor Applications)
10 HP Single Reciprocating
• Access to compressor valves w/o compressor head removal
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
•Centrifugal unloader
•Disk and spring valves
• Fully enclosed belt guard
• Heavy-duty air filter
• Industrial grade electric motor
• Heavy-duty two-stage solid cast iron pump
• Industrial grade electric motor
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• TEFC drive motor (3 phase only)
• Torrington needle bearings
• 2-groove B width motor pulley
• 2-piece tank top plate design
Basic Compressor Features
Air Dryer Options
35 cfm @ 175 psi (3- Phase)
34 cfm @ 175 psi (1-Phase)
Elite Compressor Features
• All Basic Features
• Automatic tank drain
• Low oil monitor
• Tank Discharge Ball Valve
• Vibration Pads
• Belt guard after cooler
• Refrigerated Dryer - for Shop Applications
• Modular Air Dryer capable of -40o C Dew Point
(available - for outdoor Applications)

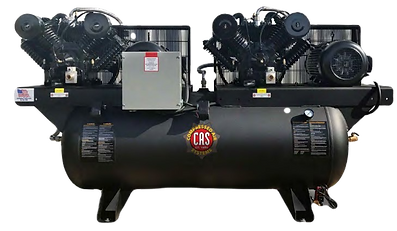

10 HP Heavy Duty Dual Reciprocating
• Access to compressor valves w/o compressor head removal
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
•Centrifugal unloader
•Disk and spring valves
• Fully enclosed belt guard
• Heavy-duty air filter
• Industrial grade electric motor
• Heavy-duty two-stage solid cast iron pump
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• TEFC drive motor (3 phase only)
• Torrington needle bearings
• 2-groove B width motor pulley
• 2-piece tank top plate design
Basic Compressor Features
Air Dryer Options
10HP 1 Phase
68 cfm @ 175 psi (Time Delay) | 34 cfm @175psi (Alternating)
10HP 3 Phase
70 cfm @ 175 psi (Time Delay) | 35 cfm @175 psi (Alternating)
Elite Compressor Features
• All Basic Features
• Automatic tank drain
• Low oil monitor
• Tank Discharge Ball Valve
• Vibration Pads
• Belt guard after cooler
• Refrigerated Dryer - for Shop Applications
• Modular Air Dryer capable of -40o C Dew Point
(available - for outdoor Applications)
